Stainless Steel ASTM A182 F316/316L/316H Threaded Flange, Monel ASTM A182 400/K500 Threaded Flange, Nickel 200/201 Threaded Flange, ANSI B16.5 ASTM A182 Inconel 600/601/625 Threaded Flange, Incoloy 800/800H/800HT Threaded Flange, Titanium Gr1/Gr2/Gr5/gr11 Threaded Flange, SS ASTM A403 WP-S/WP-W/WP-WX Threaded Flange, SS ASTM A403 309S/310S/317L Threaded Flange, Carbon Steel ASTM A234 WPB, WPBW Threaded Flange, Carbon Steel A234 WPHY 42/WPHY 46/WPHY 52 Threaded Flange, Duplex Steel ASTM A182 F44/F45/F51 Threaded Flange, Duplex Steel ASTM A182 F53/F55/F56 Threaded Flange, Alloy Steel F11/F22/F91 Threaded Flange

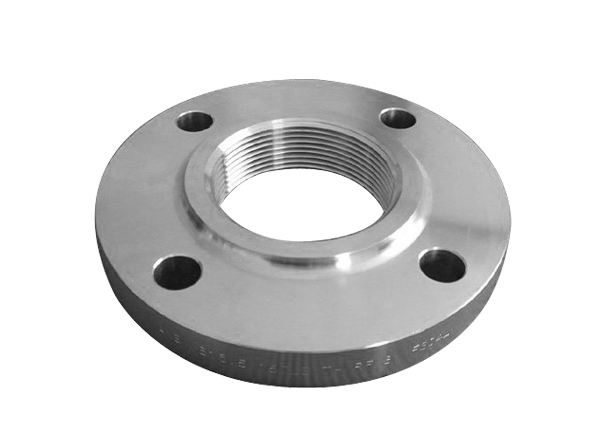

Threaded pipe flanges are the special type of flanges which can be attached to the pipe without welding. Threaded flanges are threaded in the bore which matches an external thread on the pipe. Threaded pipe flanges is just like to slip-on pipe flanges that are used with pipes that have external threads. It is used where small diameter and high pressure is required. These flanges are available in all materials, specifications, sizes and grades.
Key Features of Threaded Flange:Threaded pipe flanges are typically provided with a raised face, flat face, or RTJ facing. When a raised face is essential for threaded pipe flanges, the standard height is 1/16" for threaded pipe flanges under 400#. For threaded pipe flanges of 400# and up, the standard threaded pipe flange raised face height is 1/4".
| Size: | 1/2"NB TO 24"NB IN |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Materials: | Monel : Grade: Monel 400, Monel K500, Monel R-405 Nickel : Grade: Nickel 200, Nickel 201 Inconel : Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718 Incoloy : Grade: Incoloy 800, Inconel 800H, 800HT Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X Titanium : Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 Stainless Steel : Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Carbon Steel : Grade: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Duplex Steel: Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 Alloy Steel: Grade : ASTM A182 F1, F5, F9, F11, F22, F91 |
| Value Added Service: | CNC Machine, Customized Flanges |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
NPS 1/2
| Class | 150 | 300 | 400 | 600 | 900 | 1500 | 2500 |
| Diameter - A | 30 | 38 | 38 | 38 | 38 | 38 | 43 |
| Diameter - D | 90 | 95 | 95 | 95 | 120 | 120 | 135 |
| Thickness - B | 9.6 | 12.7 | 14.3 | 14.3 | 22.3 | 22.3 | 30.2 |
| 11.2 | 14.3 | 20.7 | 20.7 | 28.7 | 28.7 | 36.6 | |
| Diameter - G | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 | 35.1 |
| Diameter - K | 60.3 | 66.7 | 66.7 | 66.7 | 82.6 | 82.6 | 88.9 |
| Height - H | 14 | 21 | 22 | 22 | 32 | 32 | 40 |
| 15.6 | 22.6 | 28.4 | 28.4 | 38.4 | 38.4 | 46.4 | |
| Bolt Holes | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Diameter - L | 15.9 | 15.9 | 15.9 | 15.9 | 22.2 | 22.2 | 22.2 |
| Stud Bolts Diameter x Length | |||||||
| Diameter (in) | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 3/4 |
| Length (mm) | 55 | 65 | 75 | 75 | 110 | 110 | 120 |
Notes:
| Normal Diam. | O.D. Flange | Thk. Of Flange Min | Diam. of Hub |
Diameter of Raised Face | Lengtd Hub.Y | Thread Lengtd | Diam. of Bolt Circle |
Diam. of Bolt Holes |
Number of Bolts |
Diam. of Bolts (inch) |
Approx. Weight | ||
| inch | dn | O | C | X | G | Y | T | BC | BH | BN | BD | KG | LB |
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
| Stainless Steel Threaded Flanges | USD $2.07 - $10.08 / Piece (FOB Price) on request |
| High Nickel Alloys Threaded Flanges | USD $8.12 - $20.22 / Piece (FOB Price) on request |
| Duplex & Super Duplex Threaded Flanges | USD $10.22 - $35.52 / Piece (FOB Price) on request |
| Cupro Nickel Threaded Flanges | USD $5.21 - $10.50 / Piece (FOB Price) on request |
| Carbon Steel Threaded Flanges | USD $2.10 - $7.12 / Piece (FOB Price) on request |
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All pipes are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At JF Engineering Products LLP, all fasteners are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If fastener is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs.
JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality fasteners to meet the customer ultimate requirements in the fields of:
