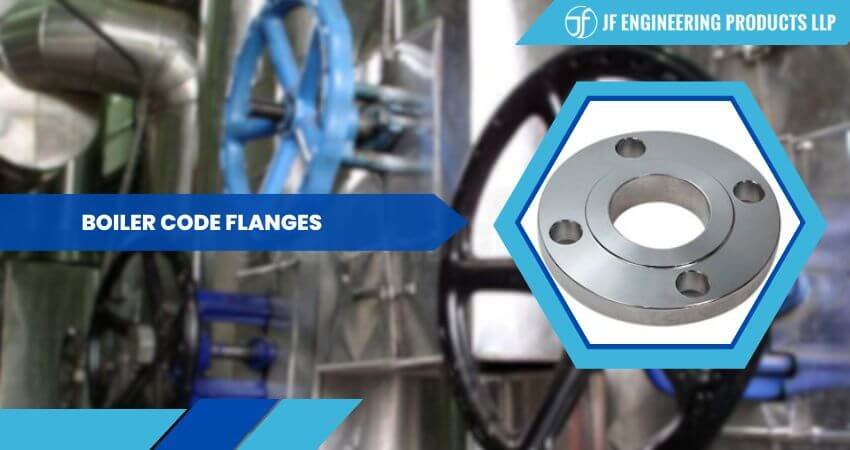

Boiler Code flanges are one of the most highly demanded flanges in various industries. These flanges are made from high quality raw material and highly ductile elements. These flanges are chemically enriched with high tensile and yield strength. These Boiler flanges are used for a variety of purposes.
These Boiler and Pressure Vessel Code are highly durable and ductile, they provide extreme protection from erosion, reduction and rusting. these flanges are capable of taking high heat and bad weather conditions. These are extremely strong. It can easily resist corrosion, stress cracking and other chemical reactions.
these can perform well at high as well as low temperature. The grade has the capacity of bearing heat and various chloride attacks.These code flanges are known for its improved mechanical and chemical strength that mainly affects resistance and ductility of the flange. These flanges are generally bolted for easy removal.
| Size: | 1/2"NB TO 24"NB IN |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Materials: | Monel : Grade: Monel 400, Monel K500, Monel R-405 Nickel : Grade: Nickel 200, Nickel 201 Inconel : Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718 Incoloy : Grade: Incoloy 800, Inconel 800H, 800HT Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X Titanium : Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 Stainless Steel : Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Carbon Steel : Grade: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Duplex Steel: Grade: ASTM / Boiler Code A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 Alloy Steel: Grade : ASTM A182 F1, F5, F9, F11, F22, F91 |
| Value Added Service: | CNC Machine, Customized Flanges |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Boiler Code Flanges Dimensions ‘DN’ (Nominal Diameter) in mm |
|||
|---|---|---|---|
| INCH | DN | INCH | DN |
| 1/2 | 15 | 12 | 300 |
| 3/4 | 20 | 14 | 350 |
| 1 | 25 | 15 | 375 |
| 1 1/4 | 32 | 16 | 400 |
| 1 1/2 | 40 | 18 | 450 |
| 2 | 50 | 20 | 500 |
| 2 1/2 | 65 | 24 | 600 |
| 3 | 80 | 28 | 700 |
| 4 | 100 | 30 | 750 |
| 5 | 125 | 32 | 800 |
| 8 | 200 | 36 | 900 |
| 10 | 250 | ||
| Standard | Class | Diameter of Bolt Circle | Dia. | Bolt Size | No. of Bolts | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 67 | 95 | M12 | 4 | 14 |
| ANSI B16.5 | ANSI 150 | 60 | 89 | 13 | 4 | 16 |
| ANSI 300 | 67 | 95 | 13 | 4 | 16 | |
| ANSI 600 | 67 | 95 | 13 | 4 | 16 | |
| ANSI 900 | 83 | 121 | 19 | 4 | 22 | |
| ANSI 1500 | 83 | 121 | 19 | 4 | 22 | |
| AS 2129 Flange | Table C | 67 | 95 | 13 | 4 | 14 |
| Table D | 67 | 95 | 13 | 4 | 14 | |
| Table E | 67 | 95 | 13 | 4 | 14 | |
| Table F | 67 | 95 | 13 | 4 | 14 | |
| Table H | 83 | 114 | 16 | 4 | 17 | |
| Table J | 83 | 114 | 16 | 4 | 17 | |
| ISO 7005 (DIN) Flange | PN6 | 55 | 80 | M10 | 4 | 11 |
| PN10 | 65 | 95 | M12 | 4 | 14 | |
| Boiler Code | 65 | 95 | M12 | 4 | 14 | |
| PN20 | 60.5 | 90 | M14 | 4 | 16 | |
| PN25 | 65 | 95 | M12 | 4 | 14 | |
| PN40 | 65 | 95 | M12 | 4 | 14 |
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All pipes are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At JF Engineering Products LLP, all fasteners are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If fastener is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs.
