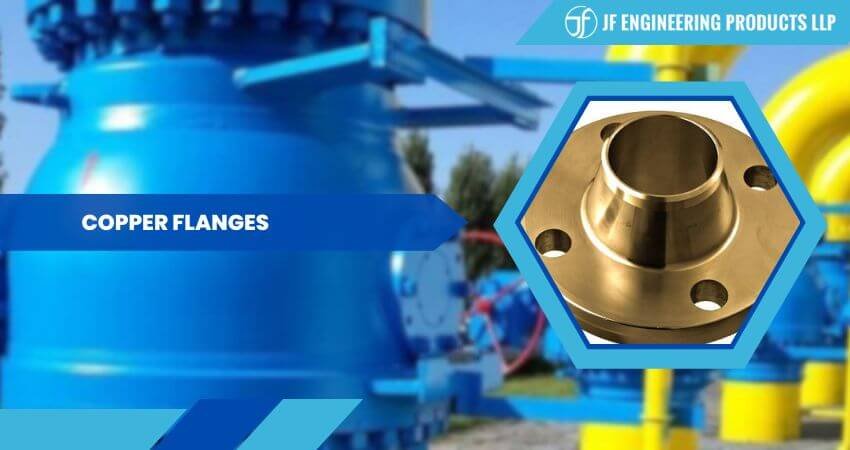

The Copper Blind Flanges are very good with respect to strength-related properties. These Copper Flanges can be used as an attachment, and this attachment could be done from one object to another. The attachment that is created using these Copper Flanges is long-lasting. Along with being durable, they are also very reliable.
These Copper Flanges are resistant to abrasion. Along with this property, these Copper Flanges are also robust in nature. These Copper Flanges are also very reliable. As these Copper Flanges possess many properties as well as features, they are used in a large number of industrial applications. These Copper Slip On Flanges are also manufactured by considering the necessary rules and regulations so that the manufactured products are of premium quality. Also, the essential guidelines, standards, and norms are also taken into consideration so that the Copper Flanges that are produced satisfy the needs and demands of the client.
The Copper Flanges could be available according to the needs or the requirements of the applications. These Copper Weld neck Flanges could also be available according to the specifications that are provided by the client. These Copper Flanges have to undergo a number of tests to ensure that the produced product offers excellent performance.
| Size: | 1/2"NB TO 24"NB IN |
| Class: | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Materials: | Monel : Grade: Monel 400, Monel K500, Monel R-405 Nickel : Grade: Nickel 200, Nickel 201 Inconel : Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718 Incoloy : Grade: Incoloy 800, Inconel 800H, 800HT Hastalloy : Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X Titanium : Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11 Stainless Steel : Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L Carbon Steel : Grade: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 Duplex Steel: Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61 Alloy Steel: Grade : ASTM A182 F1, F5, F9, F11, F22, F91 |
| Value Added Service: | CNC Machine, Customized Flanges |
| Coating/Surface Treatment: | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Copper Flanges Dimensions ‘DN’ (Nominal Diameter) in mm |
|||
|---|---|---|---|
| INCH | DN | INCH | DN |
| 1/2 | 15 | 12 | 300 |
| 3/4 | 20 | 14 | 350 |
| 1 | 25 | 15 | 375 |
| 1 1/4 | 32 | 16 | 400 |
| 1 1/2 | 40 | 18 | 450 |
| 2 | 50 | 20 | 500 |
| 2 1/2 | 65 | 24 | 600 |
| 3 | 80 | 28 | 700 |
| 4 | 100 | 30 | 750 |
| 5 | 125 | 32 | 800 |
| 8 | 200 | 36 | 900 |
| 10 | 250 | ||
| Standard | Class | Diameter of Bolt Circle | Dia. | Bolt Size | No. of Bolts | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 | PN14 | 67 | 95 | M12 | 4 | 14 |
| ANSI B16.5 | ANSI 150 | 60 | 89 | 13 | 4 | 16 |
| ANSI 300 | 67 | 95 | 13 | 4 | 16 | |
| ANSI 600 | 67 | 95 | 13 | 4 | 16 | |
| ANSI 900 | 83 | 121 | 19 | 4 | 22 | |
| ANSI 1500 | 83 | 121 | 19 | 4 | 22 | |
| AS 2129 Flange | Table C | 67 | 95 | 13 | 4 | 14 |
| Table D | 67 | 95 | 13 | 4 | 14 | |
| Table E | 67 | 95 | 13 | 4 | 14 | |
| Table F | 67 | 95 | 13 | 4 | 14 | |
| Table H | 83 | 114 | 16 | 4 | 17 | |
| Table J | 83 | 114 | 16 | 4 | 17 | |
| ISO 7005 (DIN) Flange | PN6 | 55 | 80 | M10 | 4 | 11 |
| PN10 | 65 | 95 | M12 | 4 | 14 | |
| PN16 | 65 | 95 | M12 | 4 | 14 | |
| PN20 | 60.5 | 90 | M14 | 4 | 16 | |
| PN25 | 65 | 95 | M12 | 4 | 14 | |
| PN40 | 65 | 95 | M12 | 4 | 14 |
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All pipes are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At JF Engineering Products LLP, all fasteners are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.
Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If fastener is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs.
